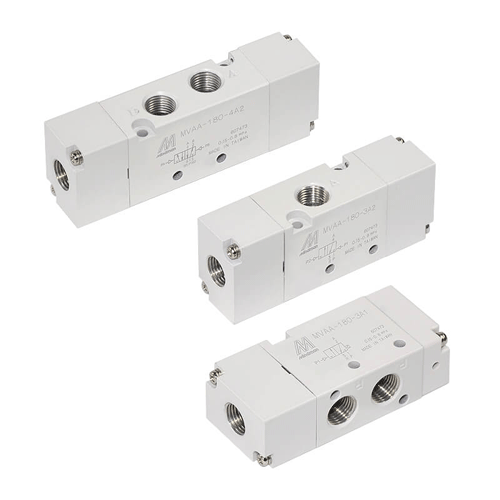

MINDMAN MVAA-180-3A1-NO – 3/2 NO, Single Pilot, RC1/8, Series MVAA-180 Pilot Valve

Part Number: MVAA-180-3A1-NO Manufacturer: Mindman

Enquire about this product:

Description

The Mindman series MVAA-180 is a 3-5 port pilot valve. Features an RC1/8 pipe size as standard with a 12mm orifice. Suitable for air only. The A1 version is a single pilot while the A2 is dual pilot.

Mindman Part Reference: MVAA-180-3A1-NO

Additional information

Function

3/2 NO

Manufacturer

Mindman

Orifice Size (MM)

12

Port Connection

RC 1/8

Media

Air

Ambient Temperature Max

60DegC

Working Pressure Max

8 Bar
