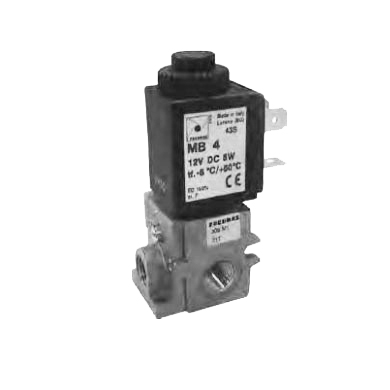

Pneumax 305.M17/1 – NO, G1/8, 24/50, Series 300 Miniature Direct Solenoid Valve

Part Number: 305.M17/1 Manufacturer: Pneumax

Enquire about this product:


The solenoid consists of coils having different diameter copper wire windings insulated according to standards ‘H’. They are encased in a nylon glass compound, all parts are corrosion resistance. The mechanical parts are nickle plated brass tube nitrile (NBR) stainless steel plunger (AISI 430F), stainless steel adjusted springs, viton poppet seals, adaptable zinc alloy interface plate. Nickeled brass manual override, nickle steel coil lock nut, zinc steel mounting screws. Electrical connectors are standard.

Pneumax Part Reference: 305.M17/1

Additional information

Weight 0.165 kg


Port Connection

G 1/8


24V AC
