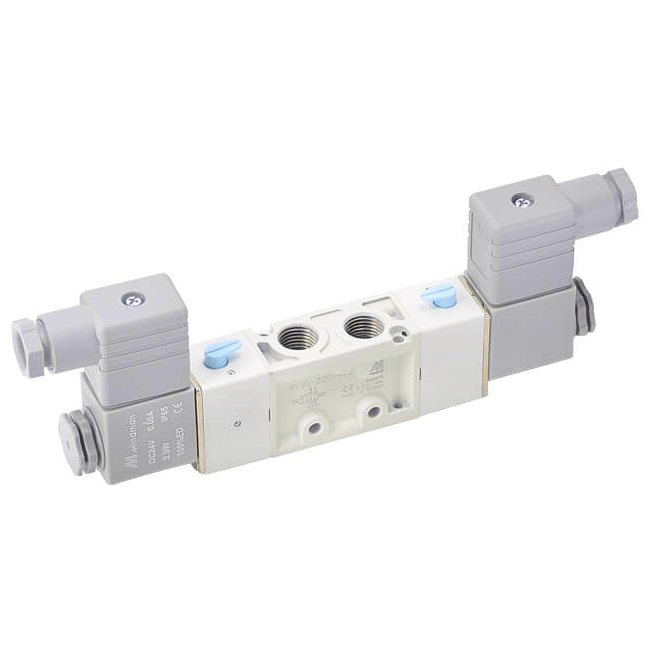

MINDMAN MVSC-220-4E2C-NC-DC24-L-G – 4/2, 24VDC, Double Solenoid, Series MVSC 220 Solenoid Valve

Part Number: MVSC-220-4E2C-NC-DC24-L-G Manufacturer: Mindman
Enquire about this product:

Description

Mindman series MVSC 220 supplies pressure to the center port on the side of the valve with the 3 ports. The outlet ports on the opposite side are connected to each side of a cylinder or actuator. The pressure will hold the cylinder in one position while the other side of the cylinder is exhausted. When voltage is applied to the solenoid end of the valve, the valve spool will shift causing air to go to the opposite side of the cylinder while exhausting the side that was pressurized.

Mindman Part Reference: MVSC-220-4E2C-NC-DC24-L-G

Additional information

Function

4/2
Manufacturer

Mindman
Port Connection

RC 1/4
Voltage

24V DC
Media

Air
Ambient Temperature Max

50DegC
Working Pressure Max

8 Bar
