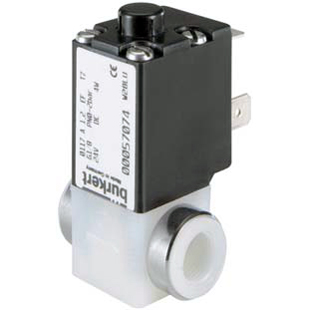

Burkert 021301 – 2/2 NC, Type 0117 Mini Solenoid Valve
Part Number: 021301
Manufacturer: Burkert
Awaiting Stock
Stock Availability :
-
Price Unavailable
Contact our sales team today for more information on this product!
Contact Us Today:
+44 (0) 28 9448 1800 sales@pneutrol.comEnquire about this product:
Description
Burkert Type 0117 is a normally closed direct acting plunger type solenoid valve with PTFE-coated diaphragm. The diaphragm isolates the fluid from the solenoid system. When deenergized the valve is closed by spring action. When energized, the solenoid armature is drawn in 2/2-Way, G 1/8, UNF 1/4-28 Fluid Control Systems against a spring to open the valve.
Burkert Reference: 021301
Additional information
| Body | ETFE |
|---|---|
| Kv value water (m3/h) | 0.09 |
| Manufacturer | Burkert |
| Medium | Alkalis, alkaline, washing and bleaching lyes |
| Orifice Size (MM) | 2 |
| Port Connection | G 1/8 |
| Product Type | Solenoid Valve |
| Seal Material | EPDM, PTFE |
| Type | 117 |
| Voltage | 230V AC |
| Voltage / Frequency (V/Hz) | 230/AC |
